The Apex

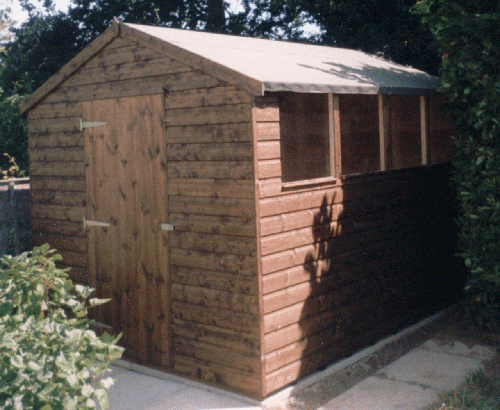

The Apex garden shed gets it’s name from it’s apex roof. Available in all sizes this timber building has windows fitted as standard, completely down one side. Windows can be changed in design and positioning if required. The Apex shed is on show at our site in Wymondham, Norfolk.

The Apex is our best selling shed.


Call us now on 01953 603398 or email enquiry@orchardtimberbuildings.co.uk for a free quote!

Category:

All buildings are finished in a choice of stained colours (Brown, Straw or Red Cedar), plus additional hand painted colours are available at extra cost.

Apex Shed Specification

  • Cladding – Choose from excellent quality 5/8″ shiplap or Tongue and Groove boarding
  • Frame – Framework of 2″ x 2″ and 1 1/2″ x 2″ plained timber secured with 4″ nails
  • Floor – Tongue and Groove matching boards on 1 1/2″ x 2″ floor rails set at 12″ centres
  • Roof – Tongue and Groove matching boards on 1 1/2″ x 2″ rails covered in 20kg mineral felt
  • Doors – Mortice and tenon joinery made doors, with brass face mortice lock
  • >Windows – Glass panes (unlike many cheaper, plastic window alternatives) fitted and beaded from the inside, making the building more secure
  • Iron Mongery- 12″ tee hinges, saftey hasp and staple and turn buttons

Standard Size Options

Size Width Depth Eaves Height Door Width Door Height
6′ x 4′ 6′ (1.83m) 4′ (1.22m) 6′ (1.83m) 2′ 6″ 5′ 10″
7′ x 5′ 7′ (2.13m) 5′ (1.52m) 6′ (1.83m) 2′ 6″ 5′ 10″
8′ x 6′ 8′ (2.44m) 6′ (1.83m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 6′ 10′ (3.05m) 6′ (1.83m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 7′ 10′ (3.05m) 7′ (2.13m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 8′ 10′ (3.05m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 10′ 10′ (3.05m) 10′ (3.05m) 6′ (1.83m) 2′ 6″ 5′ 10″
12′ x 8′ 12′ (3.66m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
12′ x 10′ 12′ (3.66m) 10′ (3.05m) 6′ (1.83m) 2′ 6″ 5′ 10″
16′ x 8′ 16′ (4.88m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
Size

10' x 10', 10' x 6', 10' x 7', 10' x 8', 12' x 10', 12' x 8', 16' x 8', 6' x 4', 7' x 5', 8' x 6'
